| MAX ASPHALT BATCHMIX PLANT |
| PLANT MODEL |
|
MAX ABP - 1500 |
MAX ABP -2000 |
| |
Rated Output @3% Moisture Content |
120 TPH |
160 TPH |
| UNITS |
Cycle time |
45 |
45 |
| COLD AGGREGATE FEEDER |
NOS. OF BINS / CAPACITY |
4/36M³ |
4/36M³ |
|
Charging Width |
3.66 Meter |
3.66 Meter |
| |
Auxiliary Drive |
2.2 kW |
2.2 kW |
| |
Auxiliary Conveyor Belt |
450 mm x 3.78 m |
450 mm x 3.78 m |
| |
Gathering Conveyor Drive |
5.5 kW |
5.5 kW |
| |
Gathering Conveyor Belt |
600 mm x 29 m |
600 mm x 29 m |
| |
Feeding Capacity |
160 tph |
160 tph |
| SLINGER CONVEYOR |
Conveyor Drive/Width |
5.5 kW/500 mm |
5.5 kW/500 mm |
| THERMO DRUM UNIT |
Dryer Length x Diameter |
8 meter x 2.1 meter |
8 meter x 2.1 meter |
| |
Drive Type |
4 Wd friction drive |
4 Wd friction drive |
| |
Drive Motor |
30 kW |
44 kW |
| BURNER |
High Pressure. Fully Automatic,modulating |
|
|
| |
Fuel |
Diesel / furnace oil |
Diesel / furnace oil |
| |
Capacity MW/hr |
14.1 |
14.1 |
| HOT ELEVATOR |
CAPACITY TPH |
140 |
180 |
| |
POWER |
15 kw |
18.5 kw |

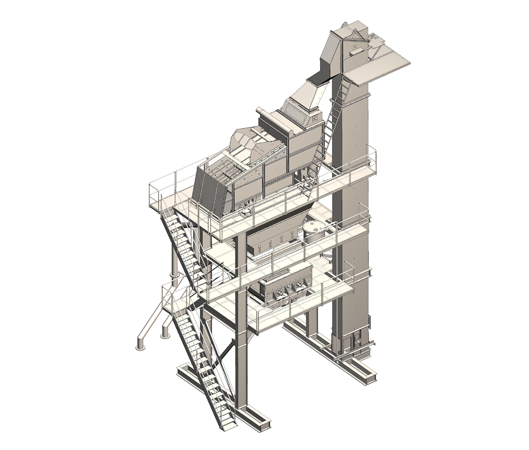

| ASPHALT BATCHING TOWER |
|
|
|
| FOUR DECK VIBRATTING SCREEN |
Screening method |
Inclined liner Vibration |
Inclined liner Vibration |
| |
No. of Deck |
4 |
4 |
| |
Screening Capacity |
140 |
180 |
| HOT AGGREGATE BIN UNITS |
NO. of Bins |
4 |
4 |
| WEIGHING UNIT |
Aggregate hopper capacity |
1600 Kg |
2000 Kg |
| |
Filler hopper capacity |
250 Kg |
250 Kg |
| |
Bitumen hopper capacity |
250 Kg |
250 Kg |
| MIXER UNIT |
Model Type |
Twin shaft hot oil jacketed |
Twin shaft hot oil jacketed |
| |
Mixer Capacity |
1500 |
2000 |
| POLLUTION CONTROL UNIT |
|
|
|
| PRIMARY |
Model Type |
Scurt Type |
Scurt Type |
| SECONDARY |
Model Type |
Bag House Filler |
Bag House Filler |
| |
Filter Area |
450 m2 |
450 m2 |
| |
Bag House Filter |
Reverse Flow System |
Reverse Flow System |
| BITUMEN TANK WITH HOT OIL HEATING |
Model Type |
Internal Heat Transfer Coil |
Internal Heat Transfer Coil |
| |
Capacity/Qty. |
30 Ton / 2 Tamk |
30 Ton / 2 Tamk |
| FUEL TANK ( FO SYSTEM ) |
Model Type |
Hot Oil Coil ( Indirect heating ) |
Hot Oil Coil ( Indirect heating ) |
| |
Capacity |
18000 ltrs |
18000 ltrs |
| CONTROL PANNEL |
Model Type |
Fulley automatic with manual overdrive |
Fulley automatic with manual overdrive |
| |
|
Plc based system with ultra modern Power Control |
Plc based system with ultra modern Power Control |
| |
|
Sequence controls |
Sequence controls |
| |
|
Automatic burner controls |
Automatic burner controls |
| ACCESSORIES |
| FILLER SILO |
Capacity in M³ |
15/17/20/22 |
15/17/20/22 |
| BITUMEN TANK |
Capacity in M³ |
15/20/25/30/40/50 |
15/20/25/30/40/50 |
| |
Heating System |
Direct Heating / Oil Heating |
Direct Heating / Oil Heating |
| THERMIC OIL HEATING |
Hot Oil Heater Capacity |
3,00,000 / 5,00,000 kcal/hr |
3,00,000 / 5,00,000 kcal/hr |
| Specification are subject to change without notice. Accessories are optional not part of standard supply. |
| MAXWELL ASPHALT BATCHMIX PLANT SELIENT FEATURES COMPARISON |
| SR NOS |
SPECIFICTION DETAIL |
MEXWELL |
OTHER COMPANY |
| 1 |
FOUNDATION |
SKID MOUNTED |
RCC FOUNDATION |
| 2 |
CONTROL PANEL |
SCADA, PLC WITH SEAMENS MAKE |
OTHER COMPANY |
| 3 |
TOWER DESIGN |
COMPECT & ADVANCE |
OLD |
| 4 |
COLD AGGREGATE FOUR BIN FEEDER |
CAP 12 TON EACH BIN |
CAP 10 TON EACH BIN |
| 5 |
THERMO DRUM DRIVE |
FRICTION |
CHAIN DRIVE |
| 6 |
THERMO DRUM AGGREGATE DISCHARGE SYSTEM INLINE |
INSIDE ROTOR |
OUTSIDE ROTOR |
| 7 |
THERMODRUM DIA. & LENGTH |
2100 X 8000 ( 27 M³ ) |
2000 X 7500 ( 23 M³ ) |
| 8 |
VIBRATING SCREEN BYPASS SYSTEEM |
YES |
NO |
| 9 |
VIBRTING SCREEN VIBRATOR MOTOR 10 HP OLI ( WAM ) MAKE ( TWO ) |
YES |
NO |
| 10 |
VIBRO MOTOR |
MAKE OLI ( WAM ) |
OTHER COMPANY |
| 11 |
PNEUMATIC SYSTEM |
SMC WITH SS ROD |
OTHER COMPANY |
| 12 |
PNEUMATIC OPERATION |
DOUBLE ACTING WITH VARIABLE OPENING OPTION |
SINGLE ACTING |
| 13 |
WEIGHING SYSTEM LOAD CELL |
MAKE ADI |
OTHER COMPANY |
| 14 |
MIXER SHAFT DRIVE COUPLE WITH BRIVENI MAKE GEAR |
YES |
NO |
| 15 |
HOT BIN GATE CYLINDER OPERATING SYSTEM |
OUT SIDE |
IN SIDE / OUT SIDE |
| 16 |
BITUMEN TANK EFECTIVE CAPACITY |
30 TON |
26 TON |
| 17 |
BITUMEN TANK HEATING SYSTEM |
INDIRECT HIGH EFFICENCY HEATING |
DIRECT LESS EFFICIENT SYSTEM |
| 18 |
THERMIC OIL HEATER |
6000 Kcl / hr |
3000 Kcl / hr |
| 19 |
BAGHOUSE FILTER BAG SHAPE |
EFFICIENT CAPSULE TYPE |
ROUND SHAPE |
| 20 |
BAGHOUSE ROTOR ( REVERSE AIR FLOW ) |
INLINE ( 3 NOS. ) |
BACK SIDE ( 2 NOS. ) |
| 21 |
FUEL TANK |
INDIRECT HIGH EFFICENCY HEATING |
STORAGE TANK |
| 22 |
SCREW CONVEYOR MAKE |
WAM |
OTHER COMPANY |
| 23 |
AIR COMPRESSOR 10HP WITH BIG FILTER MAKE INDO AIR |
YES |
NO |
| 24 |
PEDESTAL BLOCK & BEARING |
MAKE NTN |
OTHER COMPANY |
| 25 |
ALL FASTNERS |
MM SIZE GRADE 10.9 |
BSW |
