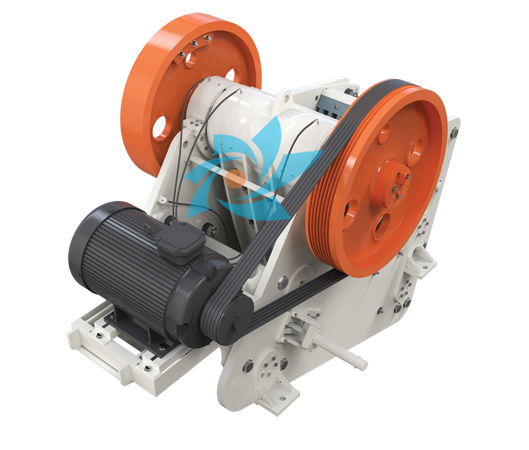

Single Toggle Jaw Crusher
Maxwell CrushtechSingle Toggle Jaw Crusher
Dynamic design
The Dynamic design of New single toggle jaw crusher promises efficient engineered product with massive crushing energy.
The Design ensured the adaptability of Maxwell Single Toggle Jaw Crusher with stationary, Portable and Mobile Quarring and Mining applications, well suited for contractors due to high portability.
Minimum Downtime
The technological advancement and incorporation of latest trends provides ease of use that reduces downtime. Maxwell Single Toggle Jaw Crusher comes with hydraulic CSS (Closed Size Setting) adjustment for secondary Jaw Crushers and Tapered Wedge adjustment for primary jaw crushers. Lubrication circuit ensures easy and reliable lubrication through centralized greasing.
Reliable Performance
The continuous development of Maxwell Jaw Crushers offers highest possible fatigue strength and excellent reliability due to rigid body frame, high-quality cast steel components and premium spherical roller bearings. No matter What you crush — from hard and abrasive rock to various recycling materials — you'll get the prime solution with the Maxwell jaw crushers.
High Adaptability
With wide range of sizes and models available, Customers are having ample alternatives to choose from which gives best returns to their investment.
Specification Table
| Primary Jaw Crusher | ||||||
| Model Name | Feed Opening (Width mm x Breath mm) | Max. Feed size (mm) | Minimum CSS (mm)$ | RPM | Input Capcaity (TPH) | Power (HP)1 |
| MAX STJC 3015 | 750 x 375 | 300 | 60 | 280 to 290 | 45 to 75 | 50 |
| MAX STJC 3020 | 750 x 500 | 400 | 95 | 280 to 290 | 60 to 100 | 60 |
| MAX STJC 3024 | 750 x 600 | 480 | 95 | 280 to 290 | 70 to 120 | 75 |
| MAX STJC 3624 | 900 x 600 | 480 | 95 | 260 to 270 | 80 to 140 | 100 |
| MAX STJC 3628 | 900 x 700 | 560 | 100 | 260 to 270 | 100 to 150 | 100 |
| MAX STJC 3630 | 900 x 750 | 600 | 135 | 260 to 270 | 100 to 160 | 120 |
| MAX STJC 4230 | 1050 x 750 | 600 | 100 | 250 to 260 | 125 to 200 | 150 |
| MAX STJC 4232 | 1050 x 800 | 640 | 135 | 250 to 260 | 125 to 210 | 150 |
| MAX STJC 4836 | 1200 x 900 | 720 | 165 | 250 to 260 | 160 to 270 | 215 |
| MAX STJC 4840 | 1200 x 1000 | 800 | 200 | 250 to 260 | 180 to 300 | 215 |
| Secondary Jaw Crusher | ||||||
| Model Name | Feed Opening (Width mm x Breath mm) | Max. Feed size (mm) | Minimum CSS (mm)s | RPM | Input Capcaity (TPH) | Power (HP)* |
| MAX STJC 2412 | 600 x 300 | 240 | 25 | 290 to 300 | 15 to 30 | 40 |
| MAX STJC 3009 | 750 x 225 | 180 | 20 | 290 to 300 | 20 to 40 | 50 |
| MAX STJC 3608 | 900 x 200 | 160 | 20 | 290 to 300 | 25 to 45 | 50 |
| MAX STJC 3610 | 900 x 250 | 200 | 20 | 290 to 300 | 25 to 50 | 50 |
| MAX STJC 4210 | 1050 x 250 | 200 | 20 | 290 to 300 | 30 to 55 | 60 |
| MAX STJC 4212 | 1050 x 300 | 240 | 25 | 290 to 300 | 30 to 60 | 60 |
| MAX STJC 4810 | 1200 x 250 | 200 | 20 | 290 to 300 | 35 to 60 | 75 |
| MAX STJC 4812 | 1200 x 300 | 240 | 25 | 290 to 300 | 35 to 65 | 75 |
